Aquify Flowmeter

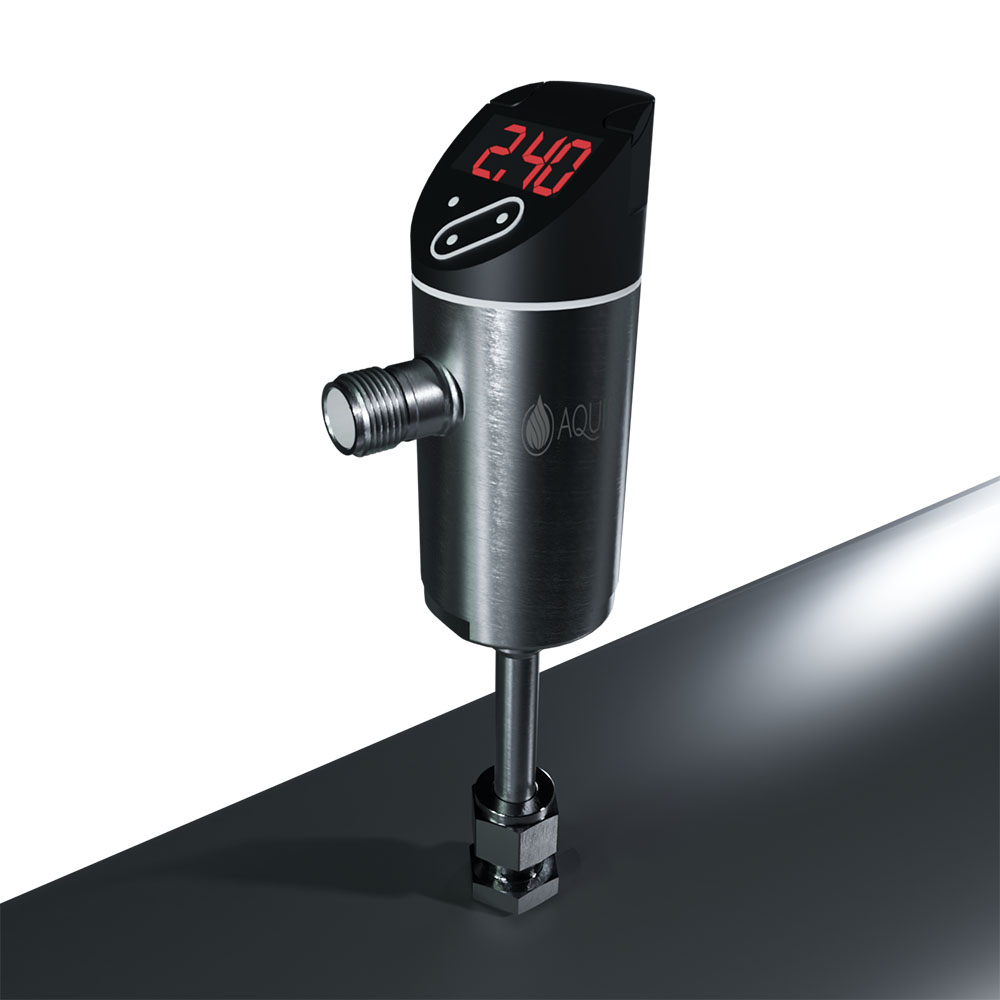

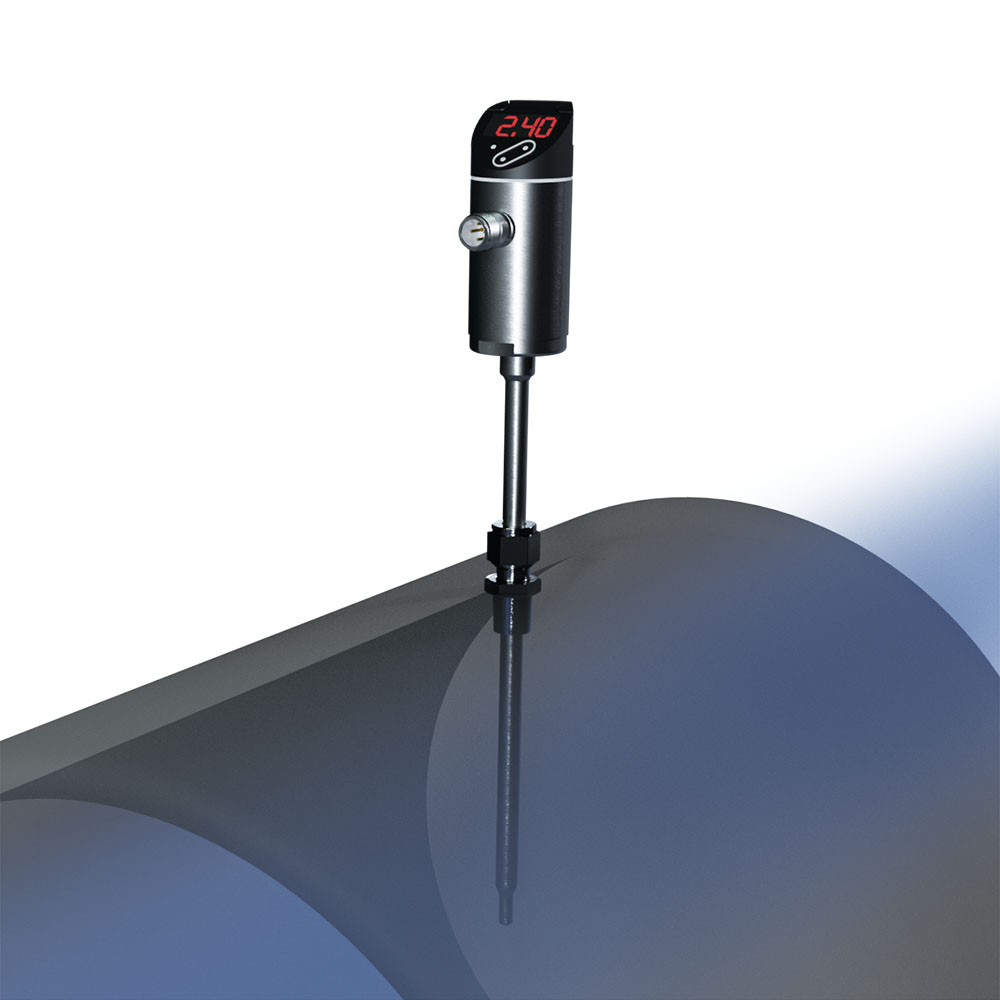

The Aquify flowmeter is designed specifically for the aquatic environment, using thermal measurement technology. Thermal flowmeters are considered superior to other designs of flowmeters due to their lack of moving parts, no/low maintenance schedule, and high accuracy. Designed to be installed directly onto PVC pipe with the included compression fitting, without the need for any sort of pipe saddle. The Aquify flowmeter can be installed as a standalone measurement device, or can communicate flow and temperature data to other equipment like the Aquify Variable Frequency Drive or Aquify Filters.

Key features

• Cost effective solution for flow monitoring and control
• Volumetric flow rate measurement in pipe sizes up to 16 inches ID
• Accurate temperature measurement in addition to flow

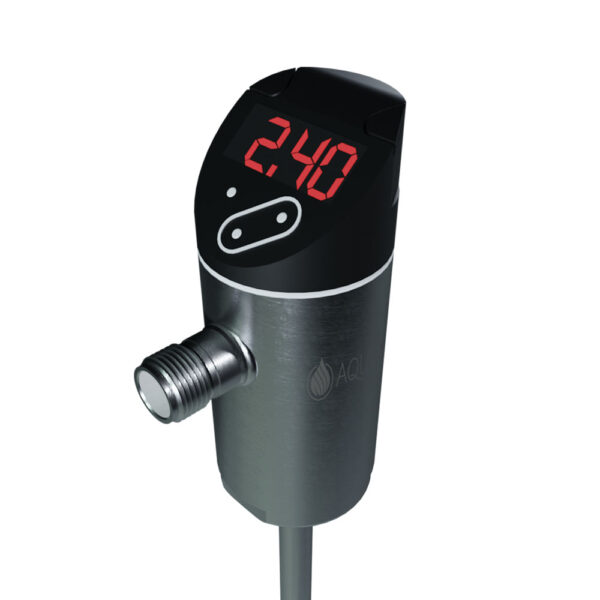

• 4-digit alphanumeric display with simple pushbutton setup
• Two analog 4-20 mA output signals for flow and temperature monitoring
• 4-pin M12 quick disconnect electrical connection with included 22-foot cable
• No pipe saddle required
• Shortest straight pipe requirement in the industry
• 5-year warranty
