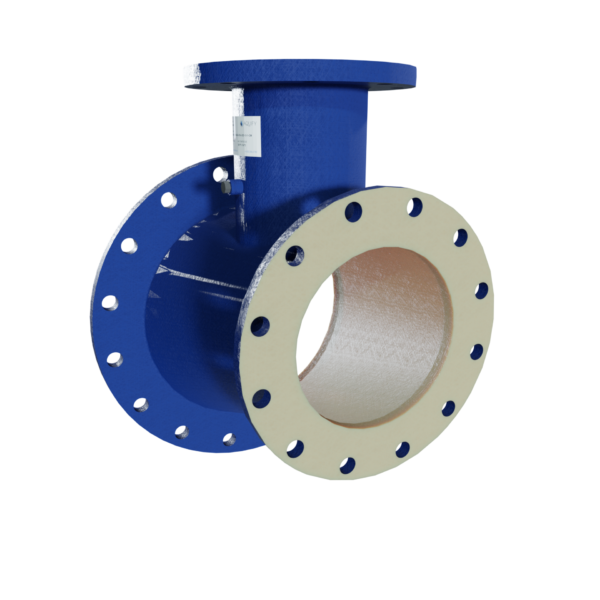

Aquify Precoat Tee – Fiberglass
The Aquify family of fiberglass precoat tees are designed for use in critical performance applications within aquatic filtration system design. Tees may be installed in systems with PVC-40, PVC-80, Stainless Steel 5S, 10S, and other pipe types using the standardized ASME Class 150 flange connection as well as paired directly to any Herborner or compatible pump.
NOTE: The pre-coat system of the Aquify Regenerative media filter system is designed specifically to interface with the Aquify precoat tee.
Features:
- Premium construction using multilayer filament wound fiberglass laminate with UV inhibitors.
- Eccentric and straight reducing types, class 150 flat-faced flanged connections for ease of installation and leak-free operation.
- Aquify premium coating creates a smooth barrier to reduce cavitation and further resist corrosion.
- Recommended for peak performance and prolonged pump life.
- Ultra-short profile allows for installation in tight spaces.
- 1/4 NPT outlet for pressure transducer.

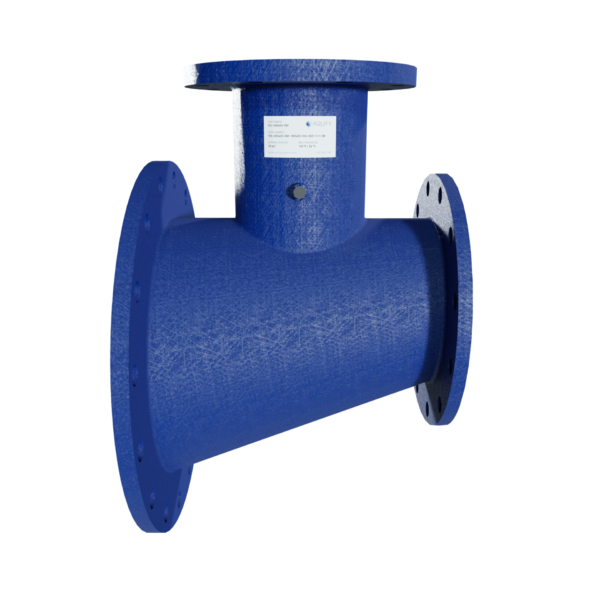

Eccentric Precoat Tee
| Influent Size
(in) |
Effluent Size
(in) |
Tee Size
(in) |
A
(in) |
B
(in) |
Weight
(lbs) |
Smart Part Number | |
|---|---|---|---|---|---|---|---|
| 4 | 3 | 2 | 9 | 4 | 4 1/2 | TEE-040302-FRP |  |
| 6 | 3 | 3 | 9 | 4 1/2 | 7 | TEE-060303-FRP | |
| 6 | 4 | 3 | 9 | 4 1/2 | 7 1/2 | TEE-060403-FRP | |
| 6 | 5 | 3 | 9 | 4 1/2 | 8 | TEE-060503-FRP | |
| 8 | 4 | 3 | 11 | 4 1/2 | 9 | TEE-080403-FRP | |
| 8 | 4 | 4 | 11 | 6 | 9 1/2 | TEE-080404-FRP | |
| 8 | 5 | 3 | 11 | 4 1/2 | 9 1/2 | TEE-080503-FRP | |
| 8 | 5 | 4 | 11 | 6 | 10 | TEE-080504-FRP | |
| 8 | 6 | 3 | 11 | 4 1/2 | 10 1/2 | TEE-080603-FRP | |
| 8 | 6 | 4 | 11 | 6 | 11 | TEE-080604-FRP | |
| 10 | 5 | 4 | 12 | 6 | 14 | TEE-100504-FRP | |
| 10 | 5 | 6 | 12 | 6 | 16 | TEE-100506-FRP | |
| 10 | 6 | 4 | 12 | 6 | 15 | TEE-100604-FRP | |
| 10 | 6 | 6 | 12 | 8 | 16 1/2 | TEE-100606-FRP | |
| 10 | 8 | 4 | 12 | 6 | 15 | TEE-100804-FRP | |
| 10 | 8 | 6 | 12 | 8 | 16 | TEE-100806-FRP | |
| 10 | 8 | 8 | 12 | 8 | 17 | TEE-100808-FRP | |
| 12 | 6 | 6 | 14 | 8 | 18 1/2 | TEE-120606-FRP | |
| 12 | 6 | 8 | 14 | 8 | 19 | TEE-120608-FRP | |
| 12 | 8 | 4 | 14 | 8 | 20 | TEE-120804-FRP | |
| 12 | 8 | 6 | 14 | 8 | 21 | TEE-120806-FRP | |
| 12 | 8 | 8 | 14 | 8 | 22 | TEE-120808-FRP | |
| 12 | 10 | 6 | 14 | 8 | 23 1/4 | TEE-121006-FRP | |
| 12 | 10 | 8 | 14 | 8 | 24 | TEE-121008-FRP | |
| 14 | 8 | 6 | 16 | 8 | 24 | TEE-140806-FRP | |
| 14 | 8 | 8 | 16 | 8 | 26 | TEE-140808-FRP | |
| 14 | 10 | 8 | 16 | 8 | 28 | TEE-141008-FRP |
Straight Precoat Tee
| Influent Size
(in) |
Effluent Size
(in) |
Tee Size
(in) |
A
(in) |
B
(in) |
Weight
(lbs) |
Smart Part Number | |
|---|---|---|---|---|---|---|---|
| 3 | 3 | 2 | 9 | 4 | 3 1/2 | TEE-030302-FRP |  |
| 4 | 4 | 3 | 9 | 4 1/2 | 5 | TEE-040403-FRP | |
| 6 | 6 | 3 | 9 | 4 1/2 | 8 1/4 | TEE-060603-FRP | |
| 6 | 6 | 4 | 9 | 4 1/2 | 9 | TEE-060604-FRP | |
| 8 | 8 | 4 | 11 | 6 | 14 | TEE-080804-FRP | |
| 8 | 8 | 6 | 11 | 6 | 16 | TEE-080806-FRP | |
| 10 | 10 | 4 | 12 | 8 | 21 | TEE-101004-FRP | |
| 10 | 10 | 6 | 12 | 8 | 22 | TEE-101006-FRP | |
| 12 | 12 | 6 | 14 | 8 | 23 | TEE-121206-FRP | |
| 12 | 12 | 8 | 14 | 8 | 23 1/2 | TEE-121208-FRP | |
| 14 | 14 | 8 | 16 | 8 | 32 | TEE-141408-FRP | |
| 16 | 16 | 8 | 18 | 8 | 35 | TEE-161608-FRP |
