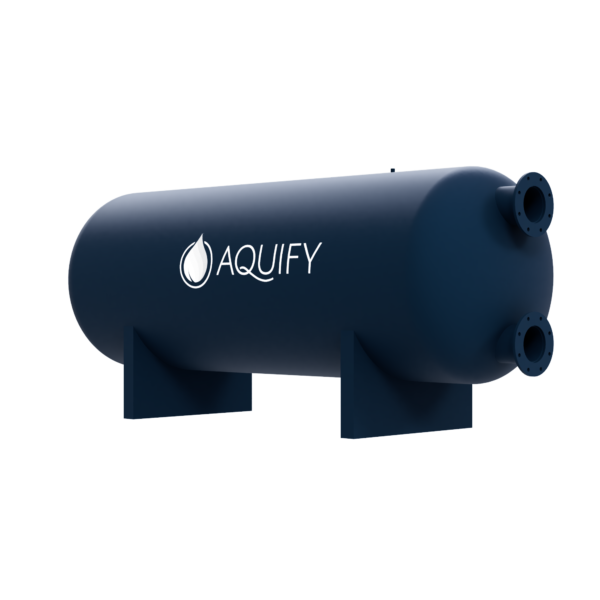

Aquify High-Rate Sand Filter – Single

Different by Design.

The Aquify high-rate sand filter (HSF) single is constructed of vinyl ester filament wound fiberglass laminate with UV inhibitors, offering a durable and lightweight fiberglass design that surpasses competitors. Its internal distribution system, designed with advanced CFD modeling, improves influential laminar flow which allows the filter to capture more debris and conserve water during backwashing.

  • Four diameter sizes: 33 in, 42 in, 48 in, and 60 in
  • Varying lengths:  10 sq ft to 80 sq ft in a single filter system
  • Flexible installation options: single, stacked, or side by side to achieve desired filter area
  • Built to last: 50 psi operating pressure with 4×1 safety factor
Aquify High-Rate Sand Filter - Single

Single Filter

Filter Diameter

(in)

 Filter Area

(sf)

 Flowrate Min

(@ 5 gpm/sf)

 Flowrate Max

(@ 15 gpm/sf)

 Backwash Rate Min

(@ 15 gpm/sf)

 Filter Media Volume

(CF)

 Dry Weight

(lbs)

 Operating Weight

(lbs)

 Smart Part Number

Left

 Smart Part Number

Right
33 10 50  150  150 11.1 350 3,000 HSF-3310-4L1 HSF-3310-4R1
33 15 75 225  225 16.7 400 4,000 HSF-3315-4L1 HSF-3315-4R1
33 20 100 300 300 22.3 500 5,600 HSF-3320-4L1 HSF-3320-4R1
33 25 125 375 375 28.0 550 6,800 HSF-3325-4L1 HSF-3325-4R1
42 15 75 225 225 21.3 350 3,000 HSF-4215-4L1 HSF-4215-4R1
42 20 100 300 300 28.5 500 5,600 HSF-4220-4L1 HSF-4220-4R1
42 25 125 375 375 35.8 575 6,800 HSF-4225-4L1 HSF-4225-4R1
42 30 150 450 450 43.0 650 8,600 HSF-4230-6L1 HSF-4230-6R1
42 35 175 525 525 50.2 715 9,700 HSF-4235-6L1  HSF-4235-6R1
42 40 200 600 600 57.7 775 11,000 HSF-4240-6L1 HSF-4240-6R1
48 20 100 300 300 33.7 575 6,800 HSF-4820-4L1 HSF-4820-4R1
48 25 125 375 375 42.4 625 8,000 HSF-4825-4L1 HSF-4825-4R1
48 30 150 450 450 51.1 700 9,500 HSF-4830-6L1 HSF-4830-6R1
48 35 175 525  525 59.8 765 10,950 HSF-4835-6L1 HSF-4835-6R1
48 40 200 600 600 68.5 825 12,500 HSF-4840-6L1 HSF-4840-6R1
48 45 225 675  675 77.2 925 14,500 HSF-4845-6L1 HSF-4845-6R1
60 30 150 450 450 67.4 825 12,000 HSF-6030-6L1 HSF-6030-6R1
60 40 200 600 600 90.4 1,000 16,500 HSF-6040-6L1 HSF-6040-6R1
60 50 250 750 750 113.4 1,150 20,500 HSF-6050-6L1 HSF-6050-6R1
60 60 300 900 900 136.3 1,275 24,000 HSF-6060-8L1 HSF-6060-8R1
60 70 350 1,050 1,050 160.2 1,425 28,000 HSF-6070-8L1 HSF-6070-8R1
60 80 400 1,200 1,200 183.2 1,550 32,000 HSF-6080-8L1 HSF-6080-8R1
